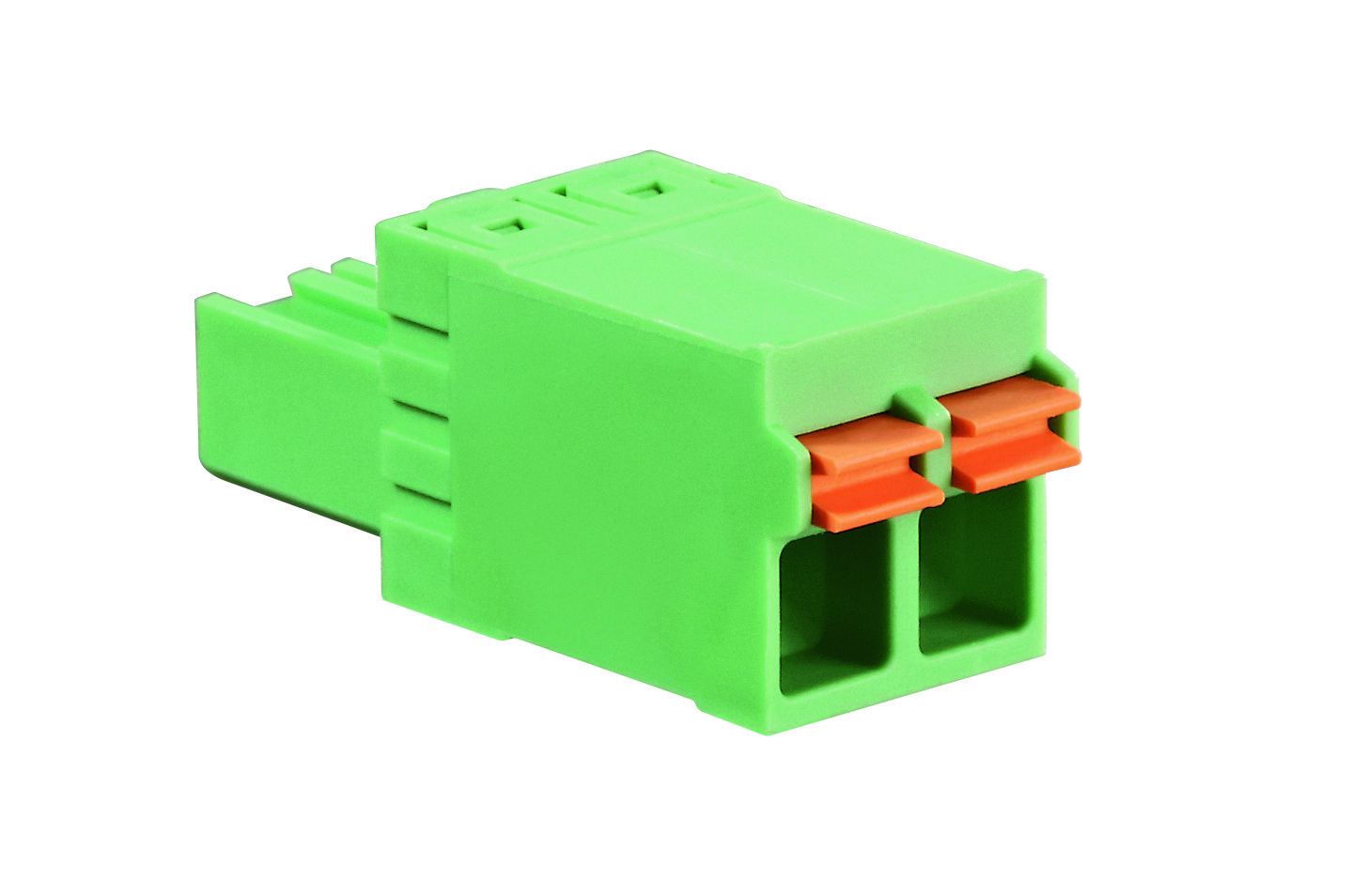

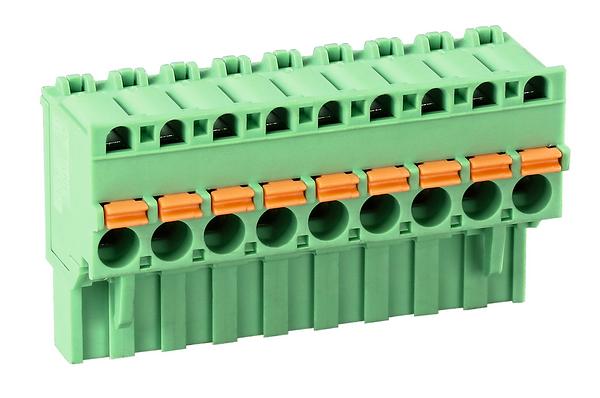

TLP SERIES-Plugs for pluggable terminal blocks

    TLPSW-111

    Pitch:3.81mm,Rated Voltage:300V(160V),Rated Current:8A(10A)

    Wire Range:30~14AWG(0.2~1.5mm²)

    TLPSW-011

    Pitch:3.50mm,Rated Voltage:300V(160V),Rated Current:8A(10A)

    Wire Range:30~14AWG(0.2~1.5mm²)

    TLPS-111

    Pitch:3.81mm,Rated Voltage:300V(160V),Rated Current:8A(10A)

    Wire Range:30~14AWG(0.2~1.5mm²)

    TLPS-011

    Pitch:3.50mm,Rated Voltage:300V(160V),Rated Current:8A(10A)

    Wire Range:30~14AWG(0.2~1.5mm²)

    TLPSW-800V

    Pitch:10.16mm,Rated Voltage:600V(1000V),Rated Current:55A(76A)
    Wire Range:20-6AWG(0.5-16mm²)

    TLPS-800V

    Pitch:10.16mm,Rated Voltage:600V(1000V),Rated Current:55A(76A)

    Wire Range:20-6AWG(0.5-16mm²)

    TLPS-302RL

    Pitch:5.08mm,Rated Voltage:300V(320V),Rated Current:12A(20A)
    Wire Range:26-12AWG Sol&Str(0.2~2.5mm² Sol&Str)

    TLPS-201RL

    Pitch:5.00mm,Rated Voltage:300V(320V),Rated Current:12A(15A)
    Wire Range:26~12AWG Sol&Str(0.2~2.5mm² Sol&Str)

    TLPSW-501

    Pitch:7.62mm,Rated Voltage:600V(1000V), Rated Current:41A(41A)

    Wire Range:8-24AWG(0.2-6mm²)

    TLPSW-309

    Pitch:5.08mm,Rated Voltage:300V(320V), Rated Current:12A(12A)

    Wire Range:26-12AWG(0.2-2.5mm² )

    TLPS-309

    Pitch:5.08mm,Rated Voltage:300V(320V), Rated Current:12A(12A)

    Wire Range:26-12AWG(0.2-2.5mm² )

    TLPSW-308

    Pitch:5.08mm,Rated Voltage:300V(320V), Rated Current:16A(18A)

    Wire Range:30~12AWG Sol&Str(0.2~4mm² Sol&Str)
