TLP SERIES-Headers(sockets) for pluggable terminal blocks

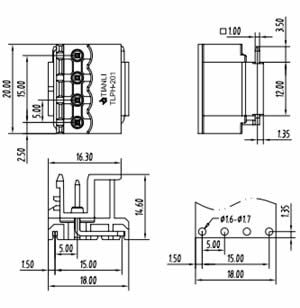

TLPH-201R

Pitch(间距) 5.00mm
Approval(认证)
Rated voltage(电压) 300V
rated current(电流) 16A
wire range(线径)
PCB hole Dia(PCB直径) Φ1.6-1.7mm
Screw (螺丝)

Housing Material(本质材料)

Poles(级数) Model(型号)
02 TLPH-201R-02P
.. ..
04 TLPH-201R-04P

PS: For reference only,Prevail Specific data by Specification company provided
