Tianli Electrical Machinery (Ningbo)Co.,Ltd.

Position: accueil > produits



produits d'information

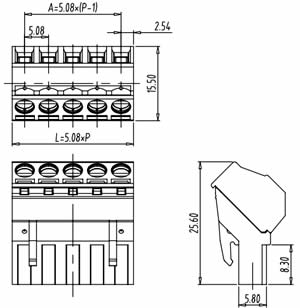

TLP SERIES-Plugs for pluggable terminal blocks

TLPS-308

Pitch(间距) 5.08mm
Approval(认证)
Rated voltage(电压) 300V 320V
rated current(电流) 16A 18A
wire range(线径) 30~12AWG Sol&Str 0.2~4mm² Sol&Str
PCB hole Dia(PCB直径)
Screw (螺丝) M3.0

Housing Material(本质材料)

Poles(级数) Model(型号)
02 TLPS-308-02P
.. ..
24 TLPS-308-24P

PS: For reference only,Prevail Specific data by Specification company provided
